Submarine fibre optic cable testing Malaysia
Anritsu Coherent OTDR
MW90010B
Submarine cable testing and long-haul fibre fault localisation with the Anritsu Coherent OTDR MW90010B—specified and supported in Malaysia by AMS Extreme.
Anritsu solution portfolio · Malaysia application support · Project-based configuration
LANDING STATION A
LANDING STATION B
FAULT
8,426 km
8,426 km
ANRITSU COHERENT OTDR
REFERENCE PLATFORMMW90010B
10 mfault-location resolution
20,000 kmmaximum range with option*
Full C-band1527.60–1567.13 nm
≤10 kgportable field platform
Why coherent OTDR
Amplified links change
the measurement problem.
Conventional OTDR methods cannot simply see through every optical amplifier in a transoceanic system. The MW90010B uses coherent detection and a tunable C-band probe to reveal the loss profile of long submarine cables with in-line repeaters.
Fault positionCable lossBending lossFibre length
Reference platform
MW90010B
Coherent OTDR
A dedicated long-distance optical-fibre diagnostic platform for submarine cables with optical amplifier repeaters. Tune the probe wavelength across the full C-band and measure paths separated by repeaters at 80 km or more.
STANDARD RANGE12,000 km20,000 km with option MW90010B-003
WAVELENGTH ACCURACY±0.05 nmAcross the specified probe range
DYNAMIC RANGE18 dB typ.Under Anritsu specified conditions
FORM FACTOR320 × 177 × 451 mmPortable for station, ship or maintenance site
* Product performance depends on configuration, fibre type and measurement conditions. Confirm the required option set with AMS Extreme.
Operational applications
From baseline to restoration.
One diagnostic platform, deployed where submarine network teams need actionable distance-to-event information.
0102Locate & diagnose
Fault localisation
Resolve fibre breaks, loss events and bending loss across amplified submarine links before dispatching a repair team.
03Repair & restore
Cable-ship operations
Take a compact CoTDR platform aboard a maintenance vessel for offshore investigation and restoration support.
Anritsu submarine cable test solution
Measure the fibre.
Validate the service.
Four complementary Anritsu products for coherent OTDR fault location, transport testing, optical spectrum analysis and fibre connector inspection.
Coherent OTDR

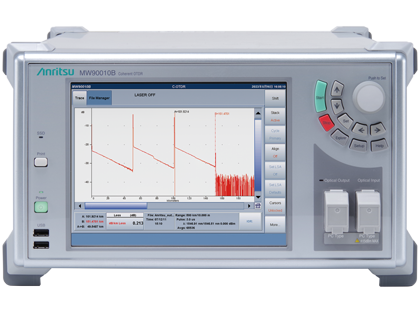

Anritsu MW90010B Coherent OTDR
Submarine cable fault location, amplified fibre loss profiling and tunable C-band CoTDR measurement.
→
Transport test

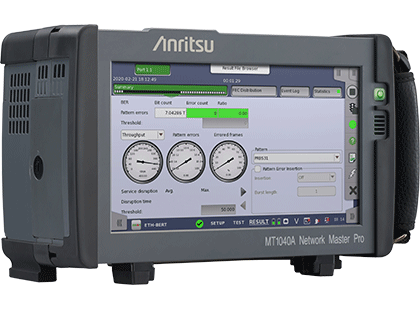

Anritsu MT1040A Network Master Pro
Ethernet and transport-network throughput testing for submarine service commissioning and restoration validation.
→
Optical analysis

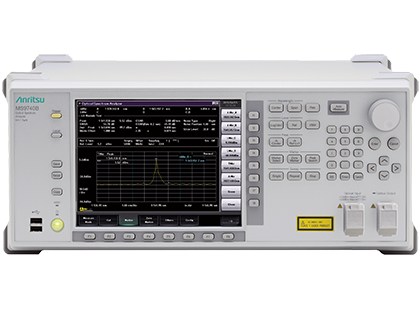

Anritsu MS9740B Optical Spectrum Analyzer
WDM optical-spectrum analysis for channel power, OSNR, gain tilt and amplifier performance investigation.
→
Fibre inspection

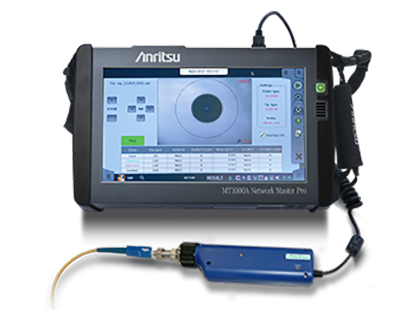

Anritsu G0306C Video Inspection Probe
Fibre connector end-face inspection before submarine cable measurement, commissioning and restoration testing.
Recommended operating workflow
01
Baseline
Capture a reference trace for every monitored fibre and wavelength path.
02
Monitor
Compare scheduled or event-triggered measurements against the baseline.
03
Localise
Translate the trace change into a precise distance-to-event diagnosis.
04
Restore
Dispatch with better information, then verify fibre and service performance.
R&D EVIDENCE
Ready for the next fibre architecture.
Anritsu and KDDI Research have demonstrated remote diagnosis of multicore optical-fibre cable in a simulated environment using the MW90010B to visualise fault location, loss profile and inter-core crosstalk. This is emerging research evidence—not a claim of standard deployed functionality.
CoTDR knowledge centre
Anritsu MW90010B &
submarine cable testing.
Technical guidance for Malaysian submarine network operators, landing stations, cable owners and maintenance teams evaluating coherent optical time domain reflectometry.
What is a Coherent OTDR (CoTDR)?
A Coherent Optical Time Domain Reflectometer uses coherent detection to measure long optical-fibre links. It is suited to submarine cable testing where in-line optical amplifier repeaters make conventional OTDR measurement difficult.
What does the Anritsu MW90010B measure?
The Anritsu Coherent OTDR MW90010B supports submarine fibre fault location, cable-loss profiling, bending-loss investigation and fibre-length measurement across amplified long-haul links.
How far can the MW90010B test?
The standard measurement range is up to 12,000 km. Option MW90010B-003 extends the specified maximum range to 20,000 km, subject to fibre, repeater spacing and measurement conditions.
Where can I source Anritsu CoTDR in Malaysia?
AMS Extreme supplies and supports Anritsu MW90010B Coherent OTDR solutions in Malaysia for landing-station assurance, submarine fibre optic cable testing, fault localisation and restoration projects.
AMS Extreme · Malaysia
Specify the right
CoTDR solution.
Tell us the cable length, repeater spacing, fibre type, measurement location and operating objective. AMS Extreme will help define the Anritsu platform, options and complementary test equipment.
